Nanostructured Zinc-Nickel vs Conventional: 9x More Protection with Sapucaia's NanoGalv®

In the automotive, solar energy, and oil & gas industries, zinc-nickel (Zn-Ni) coatings are widely used to extend the life of corrosion-prone parts and fasteners. However, there’s a key difference that often goes unnoticed: traditional Zn-Ni is not the same as nanostructured Zn-Ni .

While the conventional process offers good protection, nanotechnology has brought a leap in performance with NanoGalv® , a coating developed by Modumetal and available in Brazil with application by Sapucaia .

What is Conventional Zinc-Nickel?

Traditional Zn-Ni is a homogeneous coating applied by electroplating. It meets automotive and industrial standards and offers corrosion resistance ranging from 500 to 1,500 hours in salt spray (depending on thickness and finish).

🔹 Main features:

• Homogeneous Zn-Ni alloy with 12–16% nickel;
• Need for thick layers (8–15 μm typical);
• Good protection, but limited in extreme environments;
• Uneven thickness in threads, corners and cavities;
• Greater consumption of energy, metals and waste generation.

Homogeneous Zn-Ni alloy with 12–16% nickel;

Need for thick layers (8–15 μm typical);

Good protection, but limited in extreme environments;

Uneven thickness in threads, corners and cavities;

Greater consumption of energy, metals and waste generation.

What is Nanostructured Zinc-Nickel (NanoGalv®)?

NanoGalv® is a Zn-Ni coating obtained through a patented nanostructured electrodeposition process.

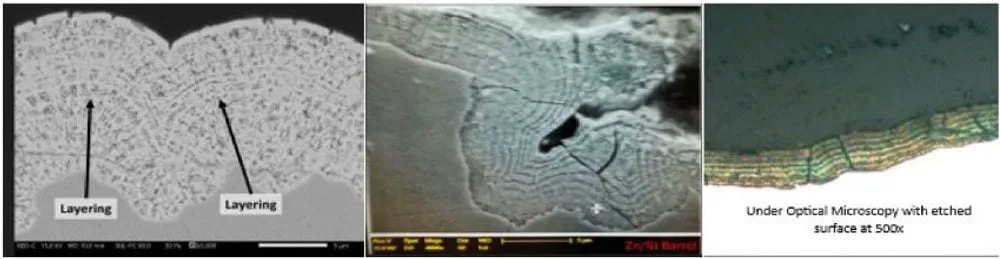

Unlike conventional coatings, it does not form a homogeneous layer, but rather several overlapping nanometric layers that act as a multiple barrier against corrosion.

🔹 Main features of NanoGalv®:

• Corrosion resistance up to 9x greater per unit thickness ;
• Exceeds 3,000 hours in ASTM B117 salt spray with only 3–5 μm;
• Low Hydrogen Embrittlement (LHE) process – reduces the risk of hydrogen embrittlement;
• Better uniformity in critical areas such as threads and edges;
• Up to 68% less waste and lower energy consumption ;
• Direct replacement for conventional cadmium, zinc nickel and PTFE in critical oil & gas applications.

Corrosion resistance up to 9x greater per unit thickness ;

Exceeds 3,000 hours in ASTM B117 salt spray with only 3–5 μm;

Low Hydrogen Embrittlement (LHE) process – reduces the risk of hydrogen embrittlement;

Better uniformity in critical areas such as threads and edges;

Up to 68% less waste and lower energy consumption ;

Direct replacement for conventional cadmium, zinc nickel and PTFE in critical oil & gas applications.

Direct Comparison

Feature

Conventional Zn-Ni

Nanostructured Zn-Ni (NanoGalv®)

Structure

Homogeneous alloy

Overlapping nanometric layers

Typical thickness

8–15 μm

3–5 μm

Corrosion resistance (ASTM B117)

500–1500 h

3,000 h

Uniformity in geometries

Low

High

Hydrogen embrittlement

Present risk

LHE Process (low risk)

Sustainability

High consumption and waste

Up to 68% less waste and metals

Why does this matter?

The choice between conventional Zn-Ni and nanostructured Zn-Ni can mean:

• Longer component life;
• Reduction of maintenance costs;
• Lower environmental impact;
• Better performance in critical sectors such as automotive, solar and oil & gas.

Longer component life;

Reduction of maintenance costs;

Lower environmental impact;

Better performance in critical sectors such as automotive, solar and oil & gas.

👉 Sapucaia is an authorized supplier of NanoGalv® in Brazil, bringing the most advanced corrosion protection technology to the national market.

🔗 Contact our team and find out how to apply nanostructured zinc-nickel to your projects.
